Monitoring conhost.exe with SCOM 2007 R2 – KB977648

Actually there is a bug within an update, that replaces the conhost.exe on Server 2008 R2 systems that do not have SP1 installed.
At these serversystems the eventlog for application is flooded with “EventID 33,  SideBySide” pointing towards conhost.exe and a missing assembly.

For further details on that error see the following KB article:;EN-US;977648

 The corresponding hotfix can be found here:

At a customer, there are many servers with 2008 R2 installed.
So we decided to build a monitor in SCOM that displays an information for every system that hasn’t been updated with the hotfix or an sp1 installed.

The monitor fires the following script, checking the fileversion of conhost.exe.

Dim oAPI, oBag
Set oAPI = CreateObject("MOM.ScriptAPI")
Set oBag = oAPI.CreatePropertyBag()

Set objFSO = CreateObject("Scripting.FileSystemObject")
conhostVersion =  objFSO.GetFileVersion("c:\windows\system32\conhost.exe")

If InStr (1,conhostVersion, ".16823", 1) > 0 Then
 Call oBag.AddValue("Status","BAD")
 Call oBag.AddValue("Status","OK")
End If

Call oAPI.Return(oBag)

So after enabling the monitor, we have 138 servers left to patch.

Kind regards and happy patching.

SEP 11: Pattern File Age Monitor

A customer asked me to monitor the age of the pattern files of the Symantec Endpoint Protection 11 Client (SEP11) on its server systems.

As I didn’t found an Symantec SEP Management Pack, I decided to create it on my own.

Perhaps someone could make use of it too, I decided to show it step by step.

Lets start

In the Authoring view select Monitor and “Create a Monitor” on the right site.

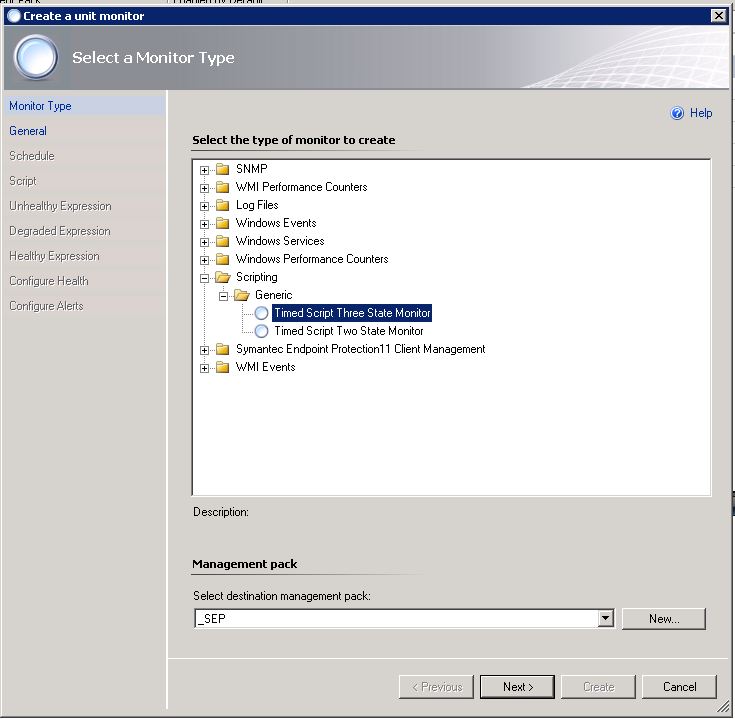

1. Select the Monitor type to create: “Timed Script Three State Monitor”
2. Change the Management Pack, for example, create a new one called “_SEP”

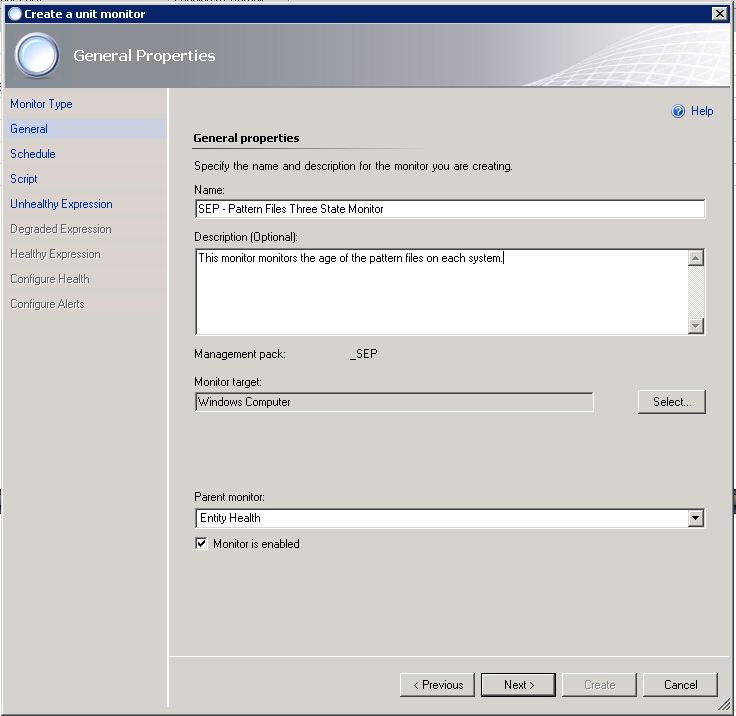

3. Name the Monitor and add a description
4. Select the target for the monitor: (in our case, all computers) Windows Computer
5. Make sure that “Monitor is enabled” is checked

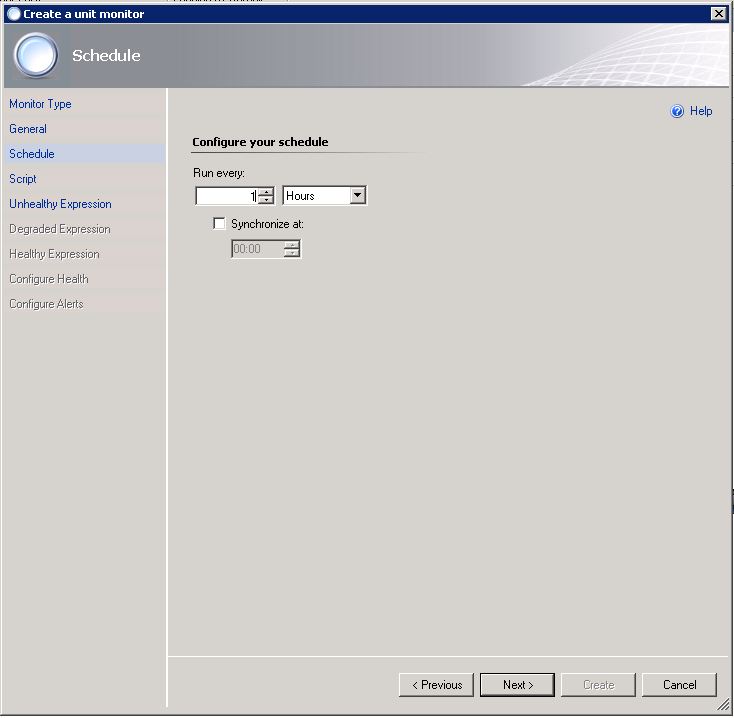

6. Set a value how often the monitor will run and check for the pattern file age
(normally once a day should be enough, but that way it would take also one day to close the alerts automatically if the pattern are updated)

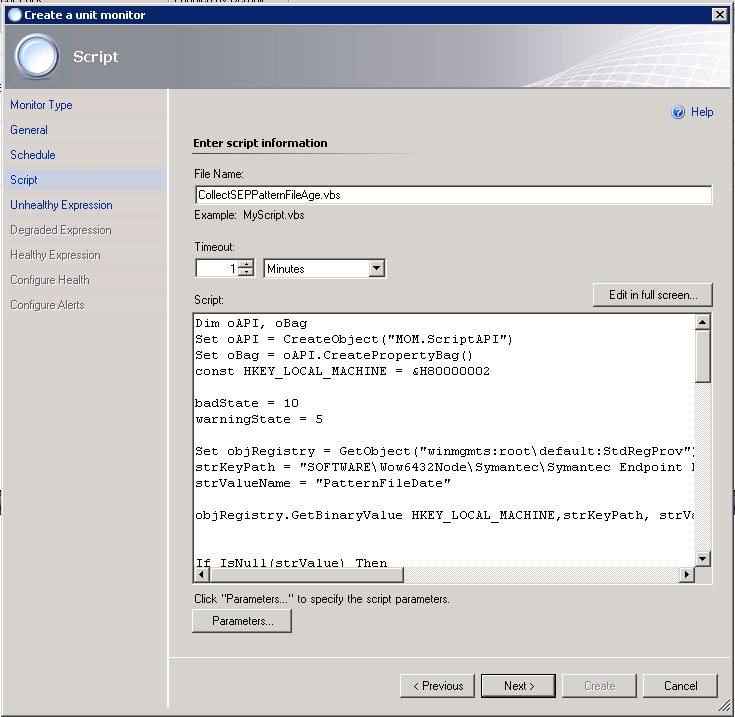

7. Add a script name (make sure that the name of the script is unique to avoid conflicts with other Management Packs)
8. Add the script that collects the pattern age from the registry of the computer system

Dim oAPI, oBag
Set oAPI = CreateObject("MOM.ScriptAPI")
Set oBag = oAPI.CreatePropertyBag()
const HKEY_LOCAL_MACHINE = &H80000002

badState = 10
warningState = 5

Set objRegistry = GetObject("winmgmts:root\default:StdRegProv")
strKeyPath = "SOFTWARE\Wow6432Node\Symantec\Symantec Endpoint Protection\AV"
strValueName = "PatternFileDate"

objRegistry.GetBinaryValue HKEY_LOCAL_MACHINE,strKeyPath, strValueName, strValue
If IsNull(strValue) Then
 strKeyPath = "SOFTWARE\Symantec\Symantec Endpoint Protection\AV"
 strValueName = "PatternFileDate"

 objRegistry.GetBinaryValue HKEY_LOCAL_MACHINE,strKeyPath, strValueName, strValue

End If

If Not IsNull(strValue) Then

y = 1970 + strValue(0)
m = 1 + strValue(1)
d = strValue(2)

date1 = CDate(y & "/" & m & "/" & d)
date2 = now
diffdays = DateDiff("d",date1, date2)


diffdays = -1

End If

if diffdays >= badState then

 Call oBag.AddValue("state","BAD")
 state = "BAD"

if diffdays >= warningState then

  Call oBag.AddValue("state","WARNING")
 state = "WARNING"
 Call oBag.AddValue("state","GOOD")
 state = "GOOD"
end If

end if

Call oAPI.LogScriptEvent("SEPPAtternFileState.vbs", 101, 2, "Patternstatescript delivered state " & state & ". Pattern File age is " & diffdays & " days.")
Call oBag.AddValue("PatternDateTimeToNowDiff",diffdays)

Call oAPI.Return(oBag)

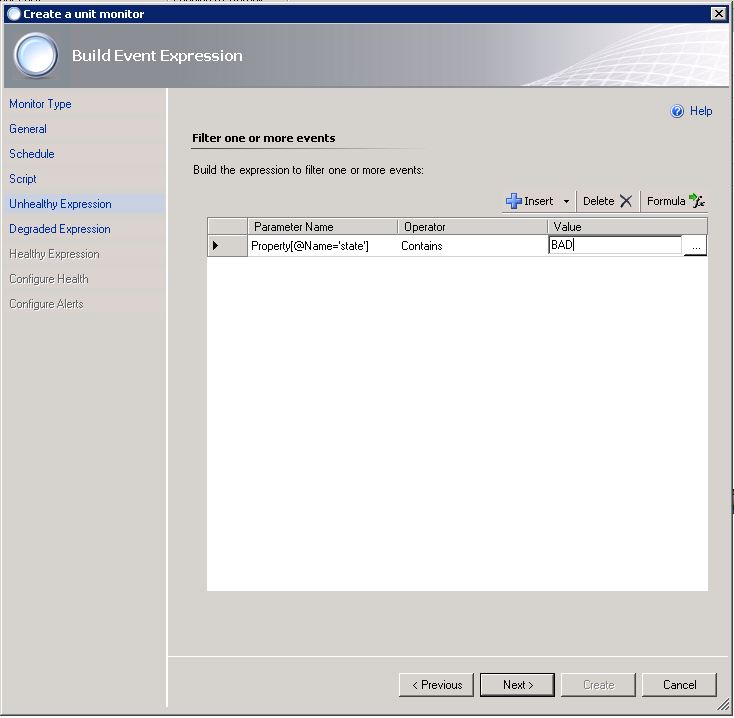

9. Add the BAD state. (If the script returns a BAD)

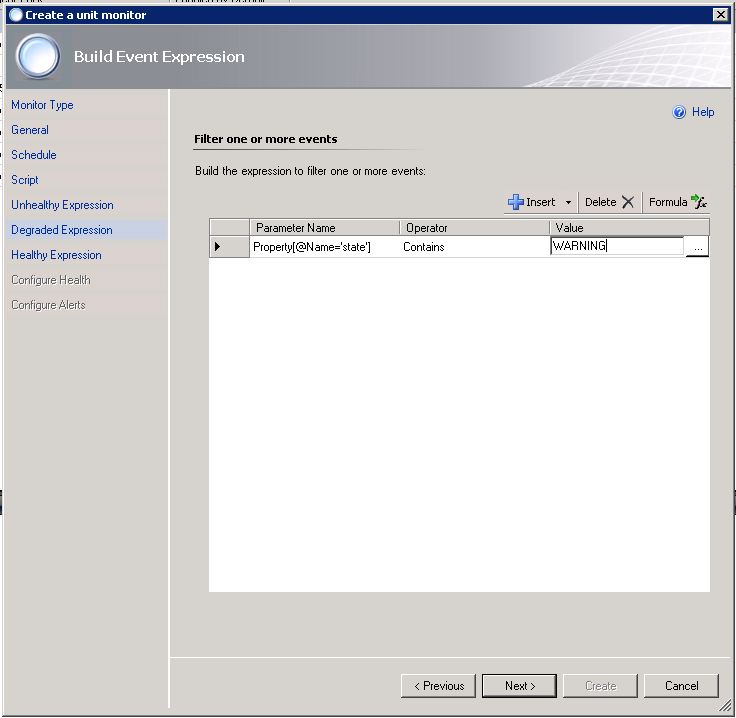

10. Add the WARNING state. (If the script returns WARNING)

11. Add the GOOD state. (If the script returns GOOD)

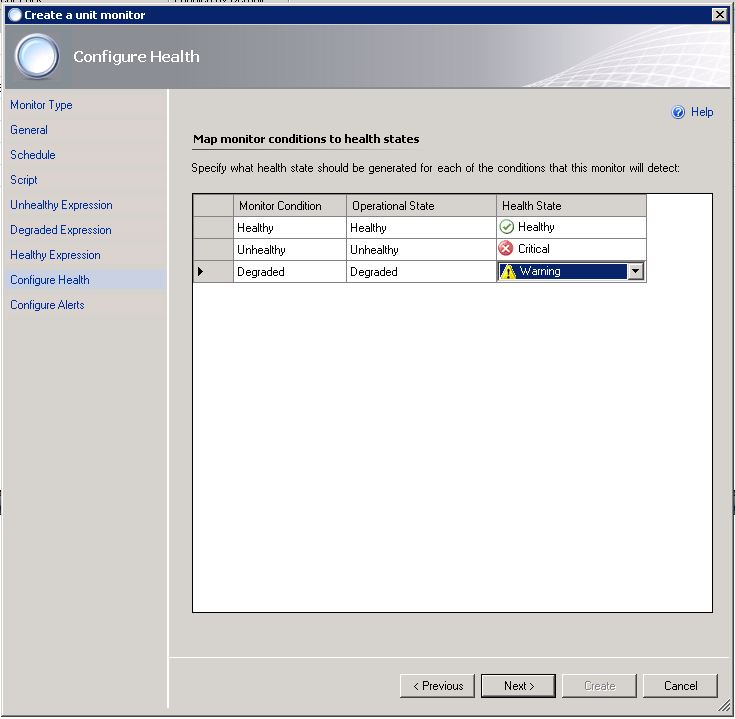

12. Set the monitor state corresponding to the script result.

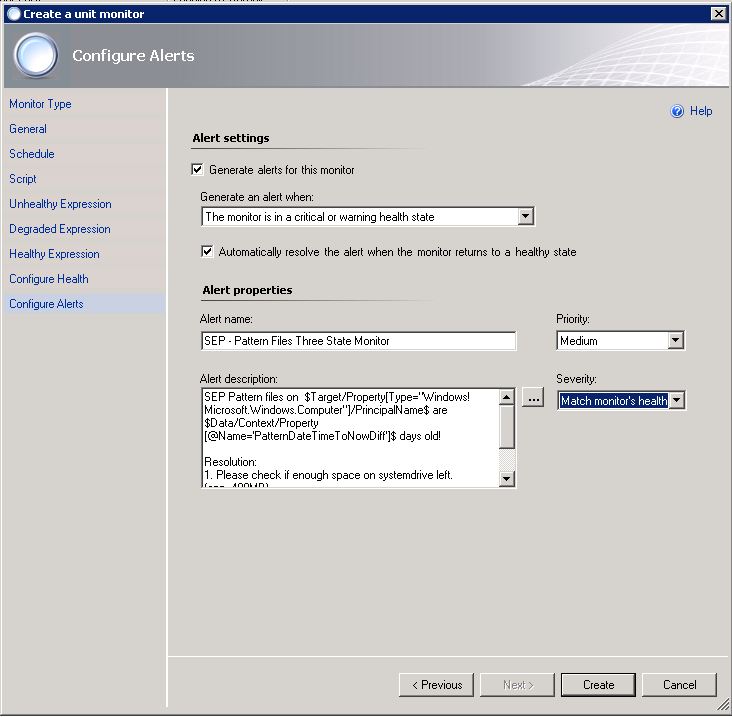

13. Enable the check box for alert generation
14. Change the dropdown “Generate an alert when: The monitor is in a critical or warning health state”
15. Add an alert name (this is what you’ll see when the error is thrown)
16. Change the severity to: “Match monitor’s health”
17. Add an alert text. Mine can be found here (it includes the computer name an the age of the pattern files and a few common resoulution possibilities)

SEP Pattern files on $Target/Property[Type="Windows!Microsoft.Windows.Computer"]/PrincipalName$ are $Data/Context/Property[@Name='PatternDateTimeToNowDiff']$ days old!


1. Please check if enough space on systemdrive left.

(app. 400MB)

2. Check if Live Update Server is reachable

3. Check if SEP Service is running

4. Reinstall SEP Client


Using these steps you can easily add the SEP pattern file age monitor to your SCOM.
Things you can do if you want to make it more professional:

  • build an management pack including discovery for computers where SEP is installed
  • add parameters for overrides, so warning and error threshold can be overridden without changing the script
    (actualy it will warn if pattern are 5 or more days old and error when pattern are 10 or more days old)
  • this script can also be used to build a rule for performance collection

But this way, it is done in round about 5 minutes.

Kind regards,
